Description

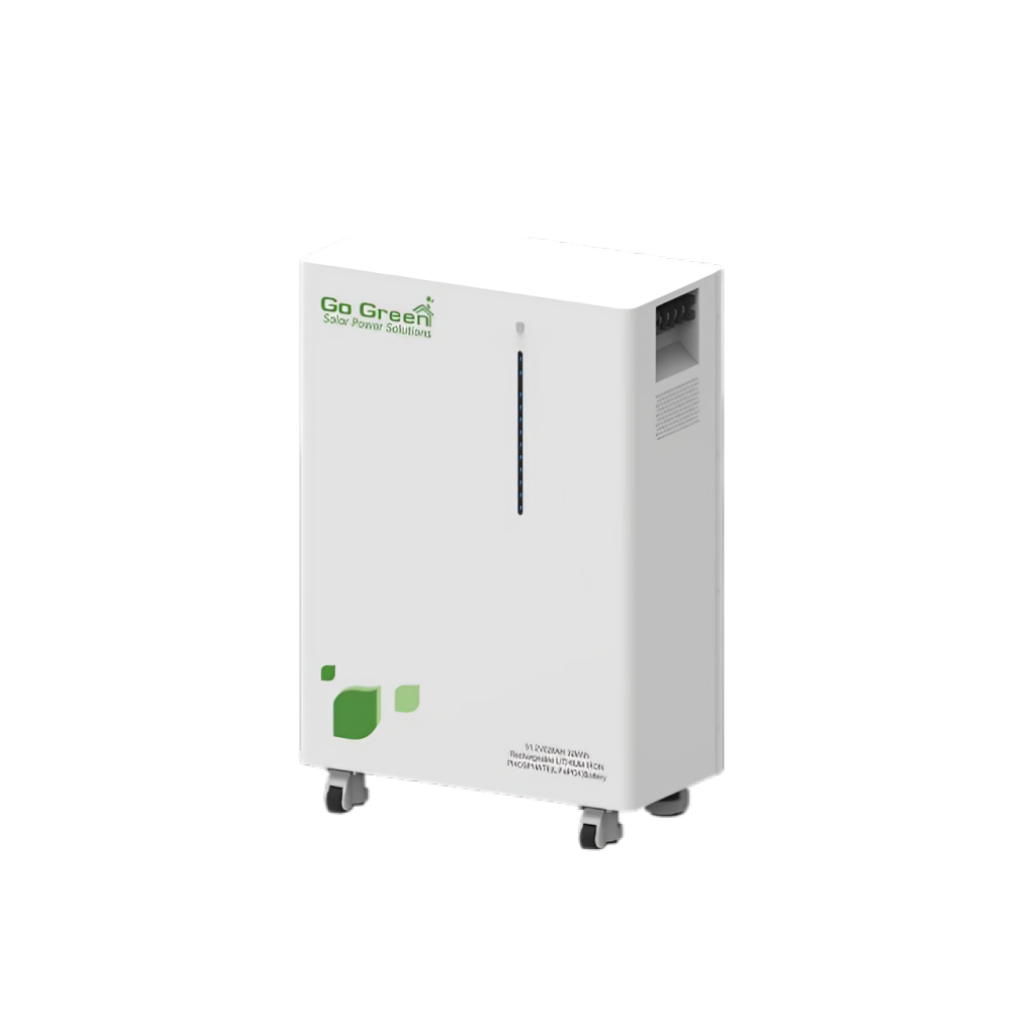

Reliable 51.2V 314Ah (16kWh) lithium battery for solar energy storage, homes, and businesses with long-lasting performance.
| Category | Specification |
|---|---|
| Product Model | GGESS-16KWH |
| Energy Capacity | 51.2V 314Ah |
| Cell Specifications | LiFePO4 |
| Cell Configuration | 16S1P |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 43.2V |
| Optimum Charge Current | 100A |
| Max Continuous Discharge Current | 150A |
| Battery Management System | Overvoltage, undervoltage, over-temperature, over-current, short circuit protection, balancing, low battery latch Function, etc. |
| Operating Temperature | Charge: 0~60°C / Discharge: -20~60°C |
| Cycle Life | >6000 cycles |
| Warranty | 5 years |
| Dimension (W×D×H) | 680 × 270 × 710 mm |
| Net Weight | / |
| Communication Interface | RS485, RS232, CAN, UART |
| Protection Level | IP20 |
| Dual Inline-Pin | Up to 6 batteries can be connected in parallel |
