| Product Name |

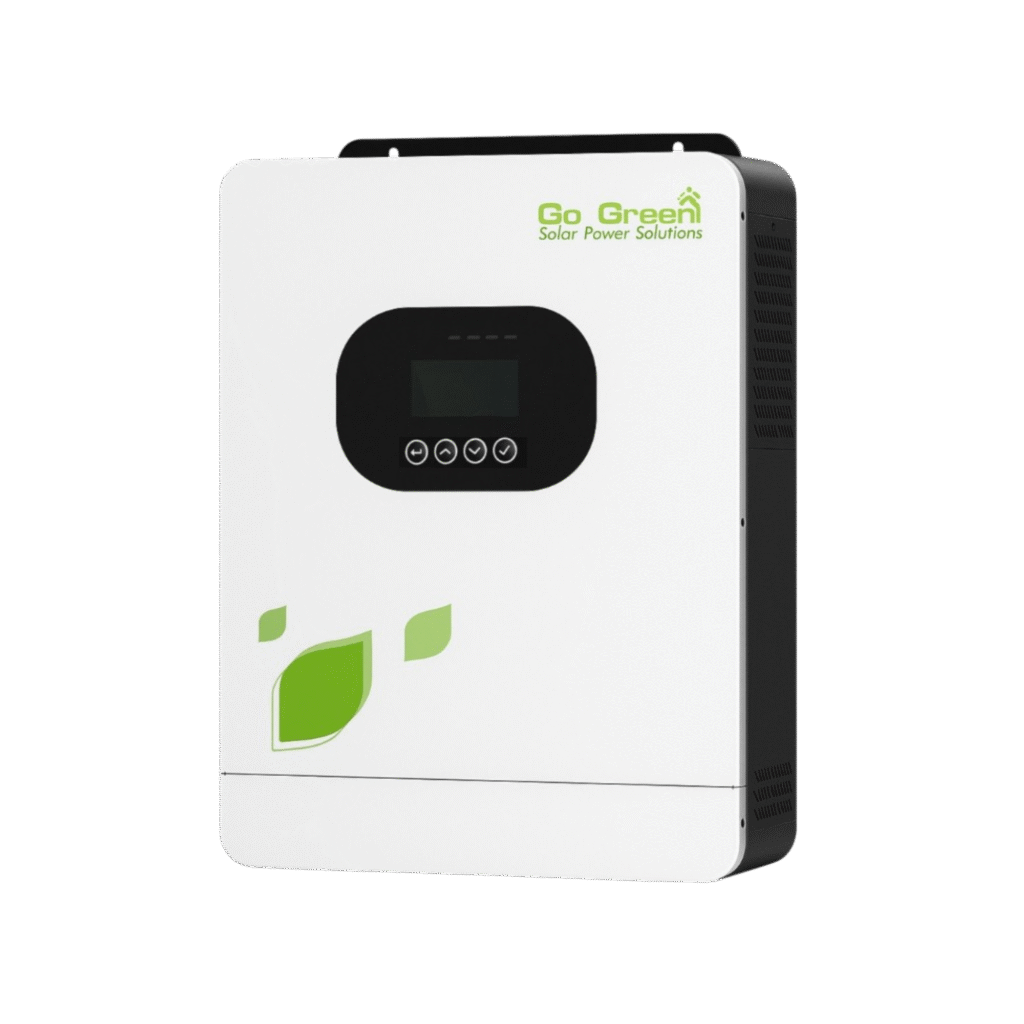

GGIV 4000 Single Phase MPPT Inverter |
| AC Input - Rated Voltage |
208 / 220 / 230 / 240; L + N + PE |
| AC Input - Voltage Range |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
| AC Input - Frequency |
50 / 60 Hz (Auto Adaptive) |
| AC Output - Rated Capacity |
4.0 kVA |
| AC Output - Peak Power |
7.2 kVA |
| AC Output - Voltage |
208 / 220 / 230 / 240 |
| AC Output - Power Factor |
1 |
| AC Output - Frequency |
50 / 60 Hz ±0.1% |
| AC Output - Switch Time |
10 ms (normal mode) / 10 ms (UPS mode) |
| AC Output - Waveform |
Pure Sine Wave |
| Overload Capacity (Battery Mode) |
60s @102%~110% load; 10s @110%~130% load; 3s @130%~150% load; 0.2s @>150% load |
| Max. Efficiency (Battery Mode) |
92.7% @24VDC |
| Parallel Quantity |
NA |
| Solar Charger Type |
MPPT |
| Max PV Input Current / Input Power |
18A / 5000W |
| MPPT Range @ Operating Voltage |
40~450 VDC |
| Max PV Open Circuit Voltage |
500 VDC |
| Max PV Charge Current |
100 A |
| Max AC Charge Current |
100 A |
| Max Charge Current (PV + AC) |
100 A |
| Battery Rated Voltage |
24 VDC |
| Floating Charge Voltage |
27 VDC |
| Overcharge Protection |
30.5 VDC |
| Battery Type |
Lithium and Lead-acid |
| HMI |
LCD |
| Interface |
RS485 / RS232 / USB / Dry Contact |
| Monitoring |
WiFi (Optional) |
| Ingress Protection |
IP21 |
| Operating Temperature |
-10°C ~ 50°C |
| Relative Humidity |
5% ~ 95% (Non-condensing) |
| Storage Temperature |
-15°C ~ 60°C |
| Net Weight |
6.4 kg |
| Dimensions (W × H × D) |
490 × 306 × 115 mm (without bracket) |
| Max. Operating Altitude |
4000 m (Derating above 1000 m) |
