| Product Name |

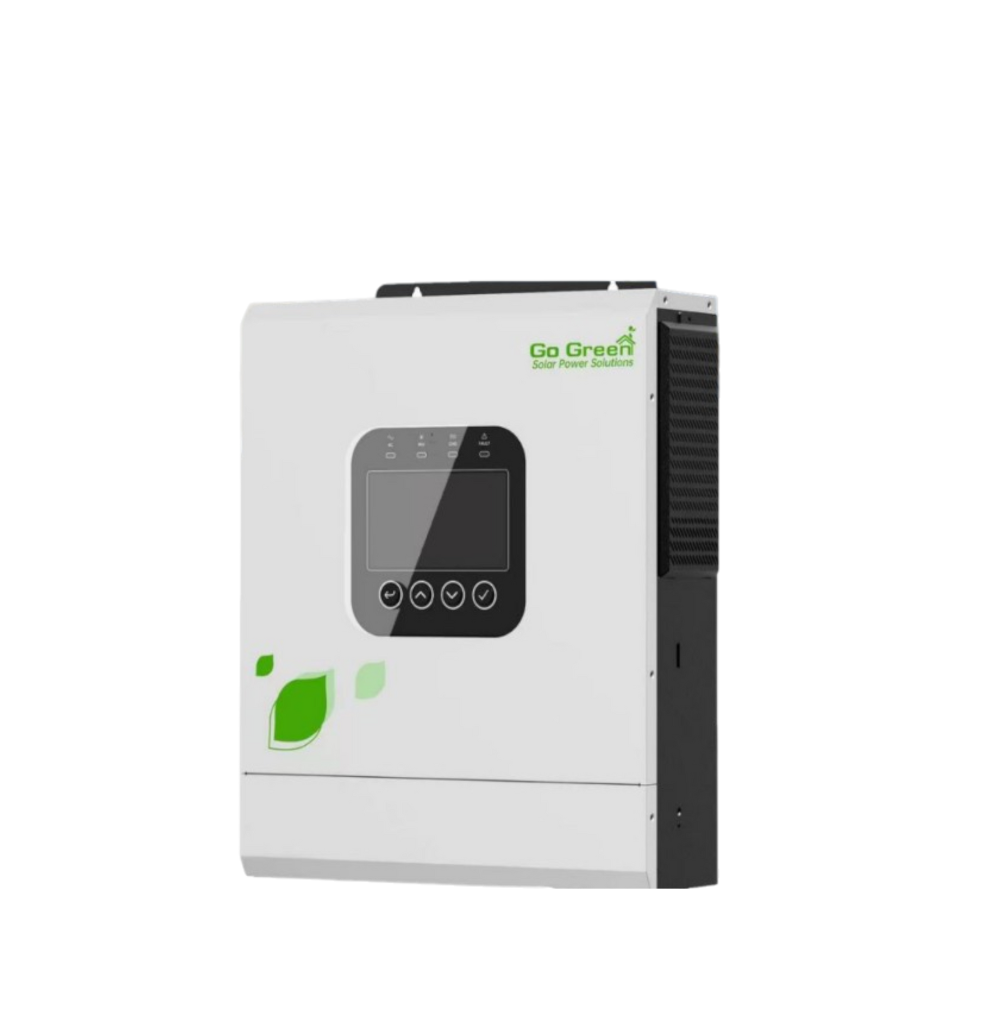

GGIV 6000 Pro Single Phase MPPT Inverter |
| AC Input - Rated Voltage |
208 / 220 / 230 / 240 VAC; L + N + PE |
| AC Input - Voltage Range |
90~280±3 (Normal Mode); 170~280±3 (UPS Mode) |
| AC Input - Frequency |
50 / 60 Hz (Auto Adaptive) |
| AC Output - Rated Capacity |
6.0 kVA |
| AC Output - Surge Power |
10 kVA |
| AC Output - Voltage |
208 / 220 / 230 / 240 VAC |
| AC Output - Power Factor |
1 |
| AC Output - Frequency |
50/60 Hz ±0.1% |
| AC Output - Switch Time |
10 ms (Normal Mode) / 10 ms (UPS Mode) |
| AC Output - Wave Form |
Pure Sine Wave |
| Overload Capacity (Battery Mode) |
60s @ 102%~110% load; 10s @ 110%~130% load; 3s @ 130%~150% load; 0.2s @ >150% load |
| Max. Efficiency (Battery Mode) |
93% @ 48VDC |
| Parallel Quantity |
9 |
| Solar Charger Type |
MPPT |
| Max PV Input Current / Power |
18A / 6000W |
| MPPT Range @ Operating Voltage |
120~450 VDC |
| Max PV Open Circuit Voltage |
500 VDC |
| Max PV Charge Current |
80A |
| Max AC Charge Current |
80A |
| Max Combined Charge Current (PV + AC) |
80A |
| Battery - Rated Voltage |
48 VDC |
| Battery - Floating Charge Voltage |
54 VDC |
| Battery - Overcharge Protection |
61 VDC |
| Battery Type |
Lithium and Lead-acid |
| HMI |
LCD |
| Interface |
RS485 / RS232 / USB / Dry Contact |
| Monitoring |
WiFi (Optional) |
| Ingress Protection |
IP21 |
| Operating Temperature |
-10°C ~ 50°C |
| Relative Humidity |
5% ~ 95% (Non-condensing) |
| Storage Temperature |
-15°C ~ 60°C |
| Net Weight |
9.5 kg |
| Dimensions (W × H × D) |
510 × 306 × 115 mm (without bracket) |
| Max Operating Altitude |
4000 m (Derating above 1000 m) |
