| Product Name |

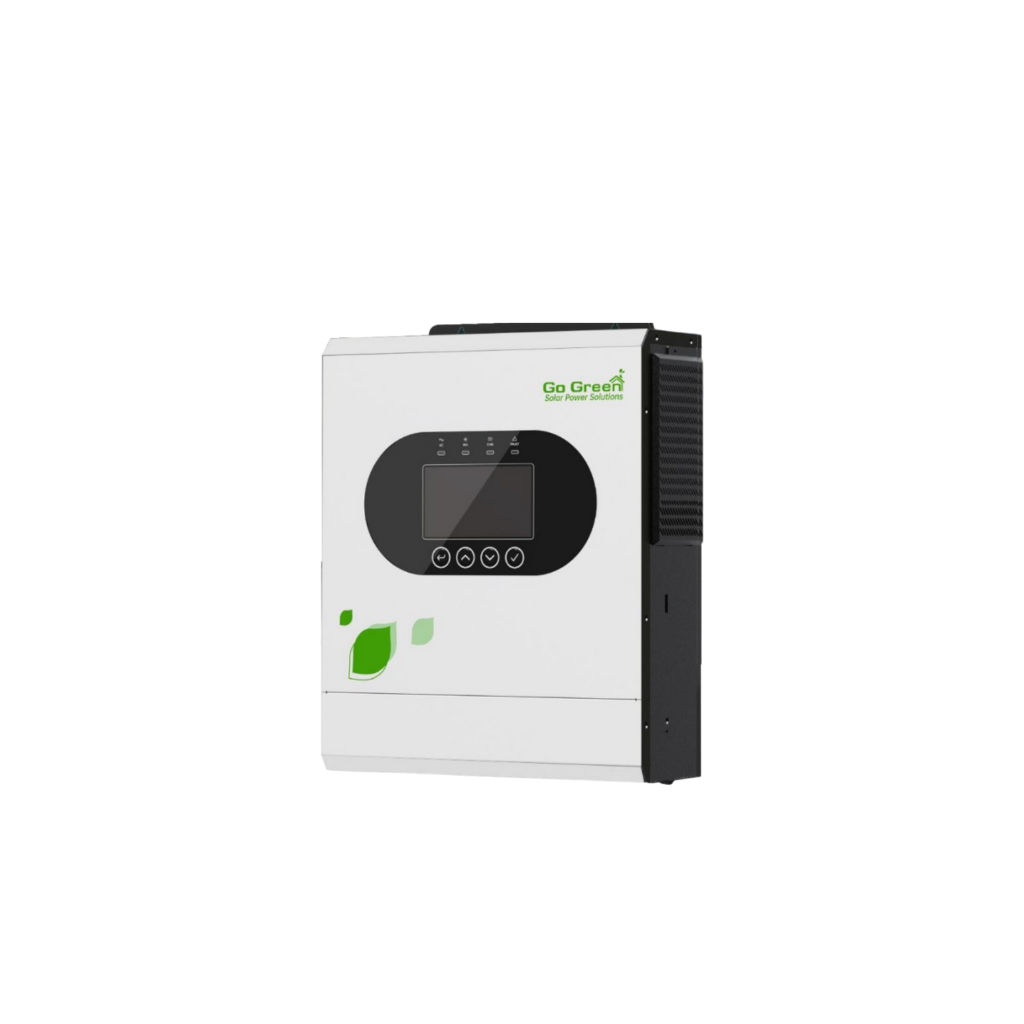

24V 5000W Single Phase MPPT Inverter |
| AC Input - Rated Voltage |
208 / 220 / 230 / 240 VAC; L + N + PE |
| AC Input - Voltage Range |
90~280+3 (Normal Mode); 170~280+3 (UPS Mode) |
| AC Input - Frequency |
50 / 60 Hz (Auto Adaptive) |
| AC Output - Rated Capacity |
5 kW |
| AC Output - Surge Power |
10 kVA |
| AC Output - Voltage |
208 / 220 / 230 / 240 VAC |
| AC Output - Power Factor |
1 |
| AC Output - Frequency |
50/60 Hz ±0.1% |
| AC Output - Switch Time |
10 ms (Normal Mode) / 10 ms (UPS Mode) |
| AC Output - Wave Form |
Pure Sine Wave |
| Overload Capacity (Battery Mode) |
1 min @ 102%-120% load; 10 s @ >120% load |
| Max. Efficiency (Battery Mode) |
93.5% @ 48VDC |
| Parallel Quantity |
NA |
| Solar Charger Type |
MPPT |
| Max PV Input Current / Power |
27 A / 9000 W |
| MPPT Range @ Operating Voltage |
60~450 VDC |
| Max PV Open Circuit Voltage |
500 VDC |
| Max PV Charge Current |
160 A |
| Max AC Charge Current |
160 A |
| Max Combined Charge Current (PV + AC) |
160 A |
| Battery - Rated Voltage |
24 VDC |
| Battery - Floating Charge Voltage |
27 VDC |
| Battery - Overcharge Protection |
30.5 VDC |
| Battery Type |
Lithium and Lead-acid |
| HMI |
LCD |
| Interface |
RS232 / RS485 / USB |
| Monitoring |
WiFi (Built-in) |
| Ingress Protection |
IP21 |
| Operating Temperature |
-10°C ~ 60°C |
| Relative Humidity |
5% ~ 95% (Non-condensing) |
| Storage Temperature |
-15°C ~ 60°C |
| Net Weight |
8.4 kg |
| Dimensions (W × H × D) |
410 × 336 × 110 mm |
| Max Operating Altitude |
4000 m (Derating above 1000 m) |
