| Model |

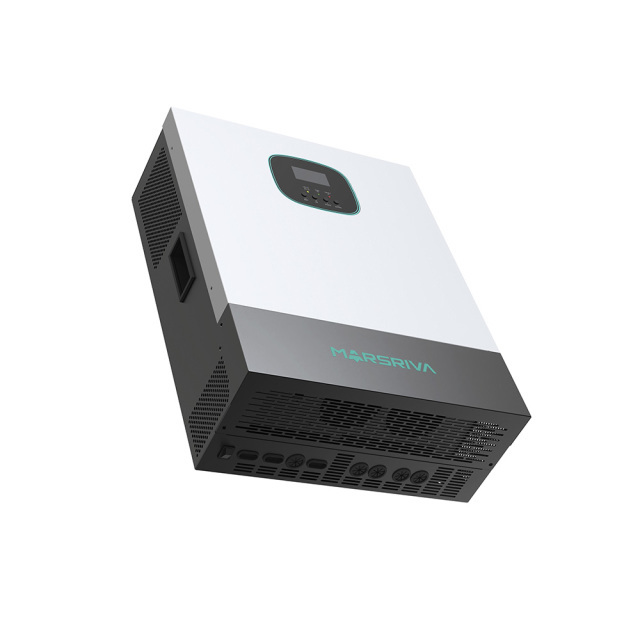

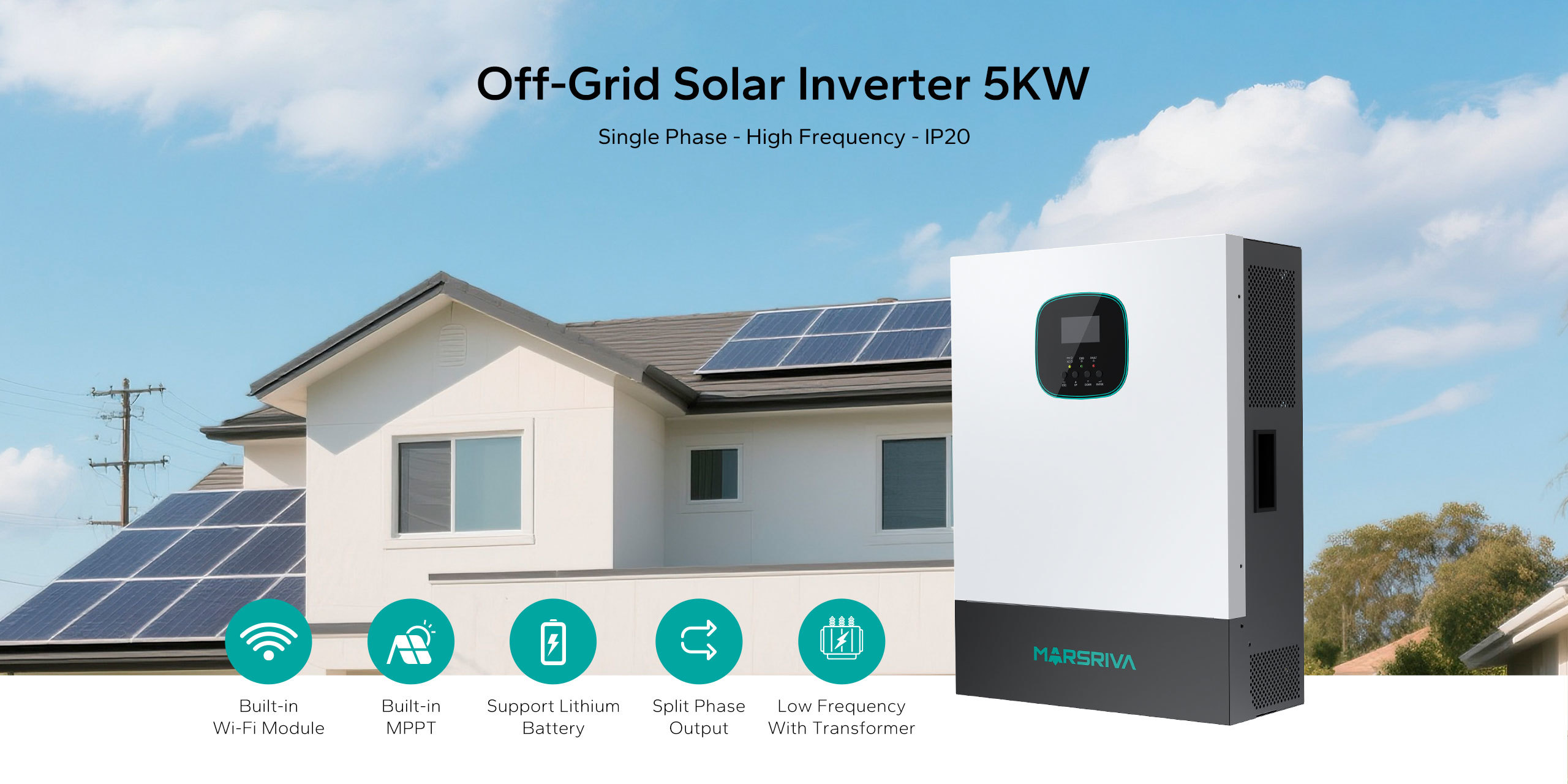

MR-SPF5K-LP2-TB20T |
| OUTPUT |
| Rated Power (W) |
5000W |
| Nomial Output Voltage |
240VAC(L1-L2) / 120VAC (L-N) |
| Output Voltage Range |
200-240VAC(L1-L2) / 100-120VAC (L-N), (Settable) |
| Frequency |
50Hz / 60Hz |
| Waveform |
Pure sinewave |
| Transfer Time |
Line Mode - Inverter Mode: <8ms; Inverter Mode - Line Mode: <8ms |
| Output Voltage Regulation |
10% rms |
| Bypass Mode |
Yes |
| Saver Mode |
Yes |
| Efficiency |
>98% |
| AC INPUT |
| Rated Capacity (VA) |
6300VA |
| Battery Voltage |
48VDC |
| Nominal Input Voltage |
240VAC (Split phase, L1-L2) |
| Input Voltage Range |
154VAC-264VAC |
| Frequency Range |
50Hz / 60Hz ±5Hz(±10Hz) |
| PV INPUT |
| Solar Charger Type |
MPPT |
| Max. PV array power |
6400W |
| PV Input Voltage Range |
60VDC-150VDC |
| Max. PV Open-circuit Voltage |
150VDC
|
| Max. PV Input Current |
120A |
| BATTERY |
| Battery Type |
Lead-acid (AGM, GEL, Flood), Lithium, User-defined |
| Max. AC Charging Current |
50VDC |
| Max. Solar Charging Current |
120A |
| Max. Hybrid Charging Current |
170A
|
| Battery Low Alarm |
48V: Battery light discharge 46V; Battery load discharge 46V@load<20%; 44V@load<50%/42V@load>50%; |
| Battery Low Recovery |
48V: Battery light discharge 48V; Battery load discharge 48V@load<20%; 46V@load<50%/44V@load>50%; |
| Battery Low Voltage Shutdown |
48V: Battery light discharge 44V; Battery load discharge 44V@load<20%; 42V@load<50%/40V@load>50%; |
| Battery High Voltage Protect |
62.4V |
| Battery High Voltage Recovery |
60V |
| FUNCTIONS |
| LED Display |
Line/AC mode, Inverter mode, Battery charging, Fault alarm |
| LCD Display |
AC input data, PV input data, Output data, Battery data, Setting options, Error codes |
| Alarm |
Low battery alarm: Beep every second; Overload alarm: Continuous beeping; Fault alarm: Continuous beeping |
| Protection |
Input Circuit Breaker, Output Circuit Breaker, Overload Protection,Short-circuit Protection, Battery Low Voltage Protection |
| Overload Capacity |
Load<110%, 1min; 110%130%, 500ms |
| COMMUNICATION |
| Embedded Interfaces |
BMS(485), RS232, Dry-contact |
| External Modules |
WiFi Module |
| GENERAL |
| Operating Temperature |
-10℃ to 50℃ |
| Storage Temperature |
-15℃ to 45℃ |
| Humidity |
0-95 %, Non condensing |
| Noise Level |
<45dB |
| Dimension, W*H*D (mm) |
403 × 543 × 176 |
